Eye Shields

Klarity offers Eye Shields protect the patient’s lens during radiation therapy treatments.

Klarity offers Silver-Plated Eye Shields in 4 different sizes. Tungston Eye Shields with Aluminum Caps are available in a wide variety of sizes.

Please contact your Account Manager or email [email protected] for more information.


Silver-Plated Eye Shields

Silver-Plated Eye Shields come in four different sizes and are highly polished. The small and medium solid lead shields fit under the eyelid to protect the lens, while permitting irradiation to the entire thickness and width of the eyelids in the treatment of superficial basal cell carcinomas of the skin.  Large solid lead shields are used when areas surrounding the eyes require irradiation, in which case, the shields are placed over the lid.  When only a portion of the eyelid requires irradiation, an extra large shield with a window is properly placed over the eyelid.

Eye Shields are fabricated of virgin lead and are silver-plated for life long protection.  Using a soft contact lens or coating the eye shield with dental wax will give a smooth surface on the eye to prevent scratching or irritation to the eye.  The lead permits less than 1% transmission of the radiation intensity at 120 kVp (3 mm Al HVL).

Always consult the Radiation Physicist when using eye shields in electrons.


KRP-934-012
Small Silver-Plated Eye Shield
Inner Dimensions: 2.3 x 2.1cm
Lead Wall Thickness: 1.7mm
Lead Density:  11.35 g/cm3


KRP-934-014
Medium Silver-Plated Eye Shield
Inner Dimensions: 2.7 x 2.4cm
Lead Wall Thickness: 1.7mm
Lead Density:  11.35 g/cm3



KRP-934-016
Large Silver-Plated Eye Shield
Inner Dimensions: 3.1 x 2.8cm
Lead Wall Thickness: 1.7mm
Lead Density:  11.35 g/cm3


KRP-934-018
Extra-Large Silver-Plated Eye Shield with Window
Inner Dimensions: 3.1 x 3.1cm
Lead Wall Thickness: 1.7mm
Lead Density:  11.35 g/cm3


Storage Box


KRP-934-020
Storage Box for Silver-Plated Eye Shields with 8 compartments
7.75w x 3.8 d x 2.4 h inches

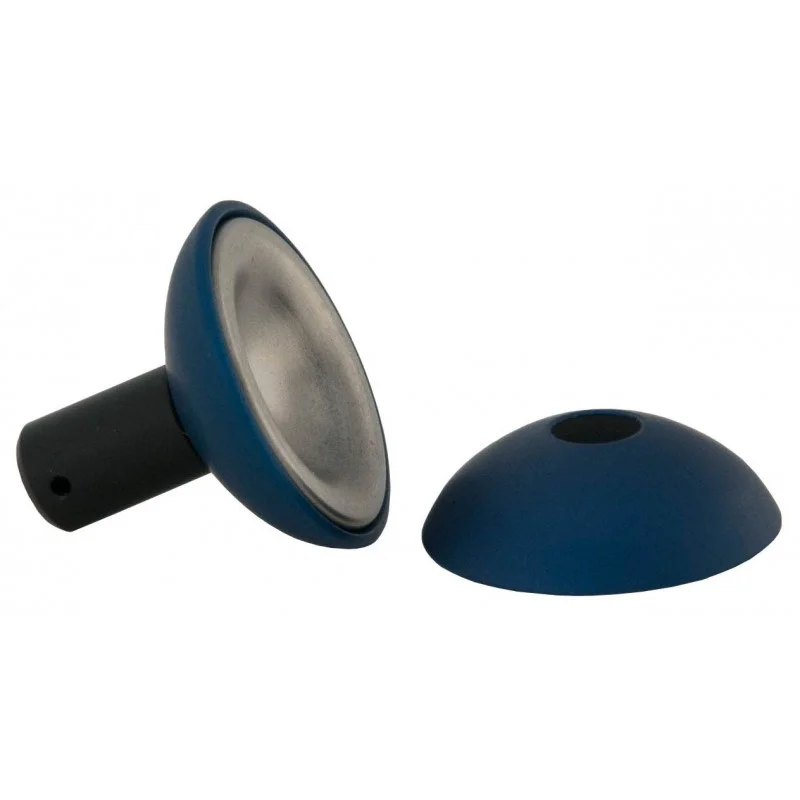

Tungsten Eye Shield with Aluminum Caps

The Tungsten Eye Shield can use either the 0.5 mm or 1 mm thick anodized aluminum cap (both are included with each tungsten eye shield) to reduce the electron backscatter to the eyelid.  The eye shield can be used without the aluminum cap when placed superficially.  They have less transmission than other eye shields.
*3 mm tungsten eye shield should be used for 9 MeV and 2 mm tungsten eye shield should be used for 6 MeV. These tungsten eye shields are not recommended for use above 9 MeV. The user will have to determine an acceptable amount of backscatter to decide whether to use 0.5 mm or 1 mm aluminum cap.


KRP-936-583
Extra-Small 2mm Tungsten Eye Shield with Aluminum Caps
Tungsten Density:  17 g/cm3
Aluminum Density:  2.718 g/cm3
Thickness: 2 mm
Dimension (A) Inside Shield:  11.6 mm
Dimension (B) O.D. Shield:  15.7 mm
Dimension (C) O.D. with 0.5mm Cap:  16.8 mm
Dimension (D) O.D. with 1.0mm Cap:  17.9 mm


KRP-936-596
Extra-Small 3mm Tungsten Eye Shield with Aluminum Caps
Tungsten Density:  17 g/cm3
Aluminum Density:  2.718 g/cm3
Thickness: 3 mm
Dimension (A) Inside Shield:  11.0 mm
Dimension (B) O.D. Shield:  17.4 mm
Dimension (C) O.D. with 0.5mm Cap:  18.5 mm
Dimension (D) O.D. with 1.0mm Cap:  19.6 mm



KRP-936-585
Small 2mm Tungsten Eye Shield with Aluminum Caps
Tungsten Density:  17 g/cm3
Aluminum Density:  2.718 g/cm3
Thickness: 2 mm
Dimension (A) Inside Shield:  13.3 mm
Dimension (B) O.D. Shield: 17.4 mm
Dimension (C) O.D. with 0.5mm Cap: 18.5 mm
Dimension (D) O.D. with 1.0mm Cap: 19.6 mm


KRP-936-598
Small 3mm Tungsten Eye Shield with Aluminum Caps
Tungsten Density:  17 g/cm3
Aluminum Density:  2.718 g/cm3
Thickness: 3 mm
Dimension (A) Inside Shield:  12.7 mm
Dimension (B) O.D. Shield:  19.1 mm
Dimension (C) O.D. with 0.5mm Cap:  20.2 mm
Dimension (D) O.D. with 1.0mm Cap:  21.3 mm



KRP-936-587
Medium 2mm Tungsten Eye Shield with Aluminum Caps
Tungsten Density:  17 g/cm3
Aluminum Density:  2.718 g/cm3
Thickness: 2 mm
Dimension (A) Inside Shield:  15 mm
Dimension (B) O.D. Shield:  19.1 mm
Dimension (C) O.D. with 0.5mm Cap: 20.2 mm
Dimension (D) O.D. with 1.0mm Cap: 21.3 mm


KRP-936-601
Medium 3mm Tungsten Eye Shield with Aluminum Caps
Tungsten Density:  17 g/cm3
Aluminum Density:  2.718 g/cm3
Thickness: 3 mm
Dimension (A) Inside Shield:  14.4 mm
Dimension (B) O.D. Shield:  20.8 mm
Dimension (C) O.D. with 0.5mm Cap:  21.9 mm
Dimension (D) O.D. with 1.0mm Cap:  23.0 mm



KRP-936-589
Large 2mm Tungsten Eye Shield with Aluminum Caps
Tungsten Density:  17 g/cm3
Aluminum Density:  2.718 g/cm3
Thickness: 2 mm
Dimension (A) Inside Shield:  16.7 mm
Dimension (B) O.D. Shield:  20.8 mm
Dimension (C) O.D. with 0.5mm Cap:  21.9 mm
Dimension (D) O.D. with 1.0mm Cap:  23.0 mm


KRP-936-623
Large 3mm Tungsten Eye Shield with Aluminum Caps
Tungsten Density:  17 g/cm3
Aluminum Density:  2.718 g/cm3
Thickness: 3 mm
Dimension (A) Inside Shield: 16.1 mm
Dimension (B) O.D. Shield:  22.5 mm
Dimension (C) O.D. with 0.5mm Cap: 23.6 mm
Dimension (D) O.D. with 1.0mm Cap: 24.7 mm



KRP-936-591
Extra-Large 2mm Tungsten Eye Shield with Aluminum Caps
Tungsten Density:  17 g/cm3
Aluminum Density:  2.718 g/cm3
Thickness: 2 mm
Dimension (A) Inside Shield:  18.4 mm
Dimension (B) O.D. Shield: 22.5 mm
Dimension (C) O.D. with 0.5mm Cap: 23.6 mm
Dimension (D) O.D. with 1.0mm Cap: 24.7 mm


KRP-936-627
Extra-Large 3mm Tungsten Eye Shield with Aluminum Caps
Tungsten Density:  17 g/cm3
Aluminum Density:  2.718 g/cm3
Thickness: 3 mm
Dimension (A) Inside Shield:  17.8 mm
Dimension (B) O.D. Shield: 24.2 mm
Dimension (C) O.D. with 0.5mm Cap: 25.3 mm
Dimension (D) O.D. with 1.0mm Cap: 26.4 mm
