Indexing Bars

Klarity offers indexing bars to fit a variety of couches, baseplates, and overlays.  Please see below for specific indexing bar compatibility. For questions about indexing bars or baseplate compatibility, please contact us directly. All indexing bars have a center pin diameter of 12.8mm with a pin height of 13mm.

Sold Individually


Turn-Lock Indexing Bars

Exact™ Couch Tops

RE-100CF

Turn-Lock Carbon Fiber Indexing Bar for Exact™ Couch Top
3 mm thickness



RE-100AL

Turn-Lock Aluminum Indexing Bar for Exact™ Couch Top
3 mm thickness



R-100PL

Turn-Lock Plastic Indexing Bar for Exact™ Couch Top
6 mm thickness
MR Safe


Spring-Lock Indexing Bars

Exact™ Couch Tops

RE-101CF

Spring-Lock Carbon Fiber Indexing Bar for Exact™ Couch Top
3 mm thickness



RE-101AL

Spring-Lock Aluminum Indexing Bar for Exact™ Couch Top
3 mm thickness

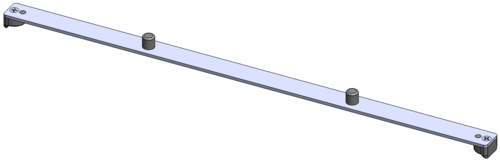

Press-Lock Indexing Bars

Traditional-style Indexing Bars for Exact™ Couch Tops


RE-102CF

Press-Lock Carbon Fiber Indexing Bar for Exact™ Couch Top
3 mm thickness



RE-102AL

Press-Lock Aluminum Indexing Bar for Exact™ Couch Top
3 mm thickness



RE-102PL

Press-Lock Plastic Indexing Bar for Exact™ Couch Top
6 mm thickness
MR Safe


Insert-Lock Indexing Bars

iBEAM®, Novalis, and TomoTherapy® Couch Tops

RE-103CF

Insert-Lock Carbon Fiber Indexing Bar for iBEAM®, Novalis, and TomoTherapy® Couch Tops
3 mm thickness



RE-103AL

Insert-Lock Aluminum Indexing Bar for iBEAM®, Novalis, and TomoTherapy® Couch Tops
3 mm thickness



RE-103PL

Insert-Lock Plastic Indexing Bar for iBEAM®, Novalis, and TomoTherapy® Couch Tops
6 mm thickness
MR Safe


Indexing Bars for the Klarity Optek Overlay

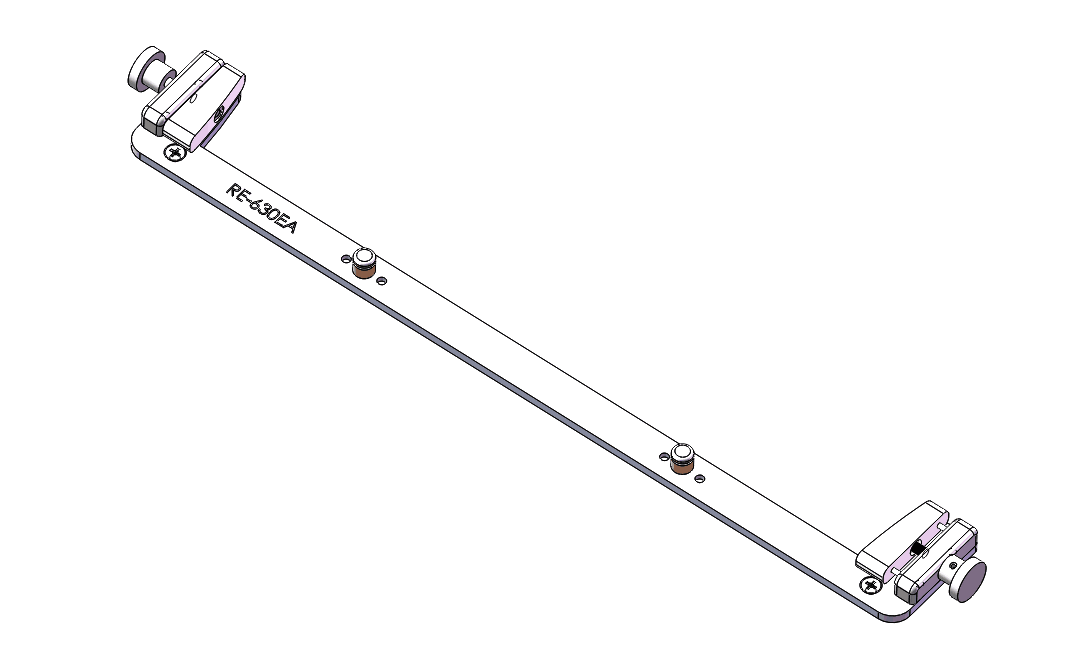

RE-630EA

Insert-Lock Aluminum Indexing Bar for Klarity Optek Overlay
For iBEAM®, Novalis, and TomoTherapy® Couch Tops
6 mm thickness



RE-7E

Turn-Lock Aluminum Indexing Bar for Klarity Optek Overlay
For Elekta Couch Top
6 mm thickness

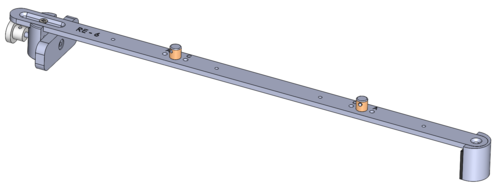

RE-6E

Turn-Lock Aluminum Indexing Bar for Klarity Optek Overlay
For Earlier Siemens and Elekta Couch Tops
6 mm thickness
475-520 mm range
