Leg Positioner

The Klarity Leg Positioner™: easy, ergonomic leg positioning with precise shoulder suppression

The Klarity Leg Positioner is a comfortable and simple system for indexing the lower extremities. The system indexes to any couch top, and can be combined with other immobilizatin systems for compatible positioning. The Leg  Positioner comes as a full system, and the Knee Cushion and elevation blocks can also be indexed directly to the couch top for additional positioning options.

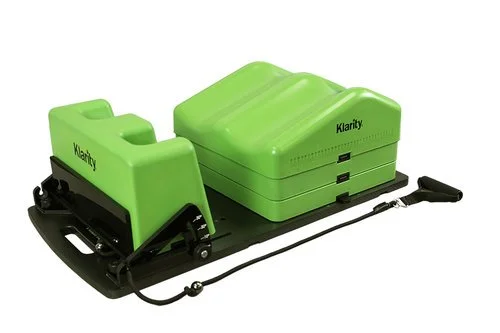

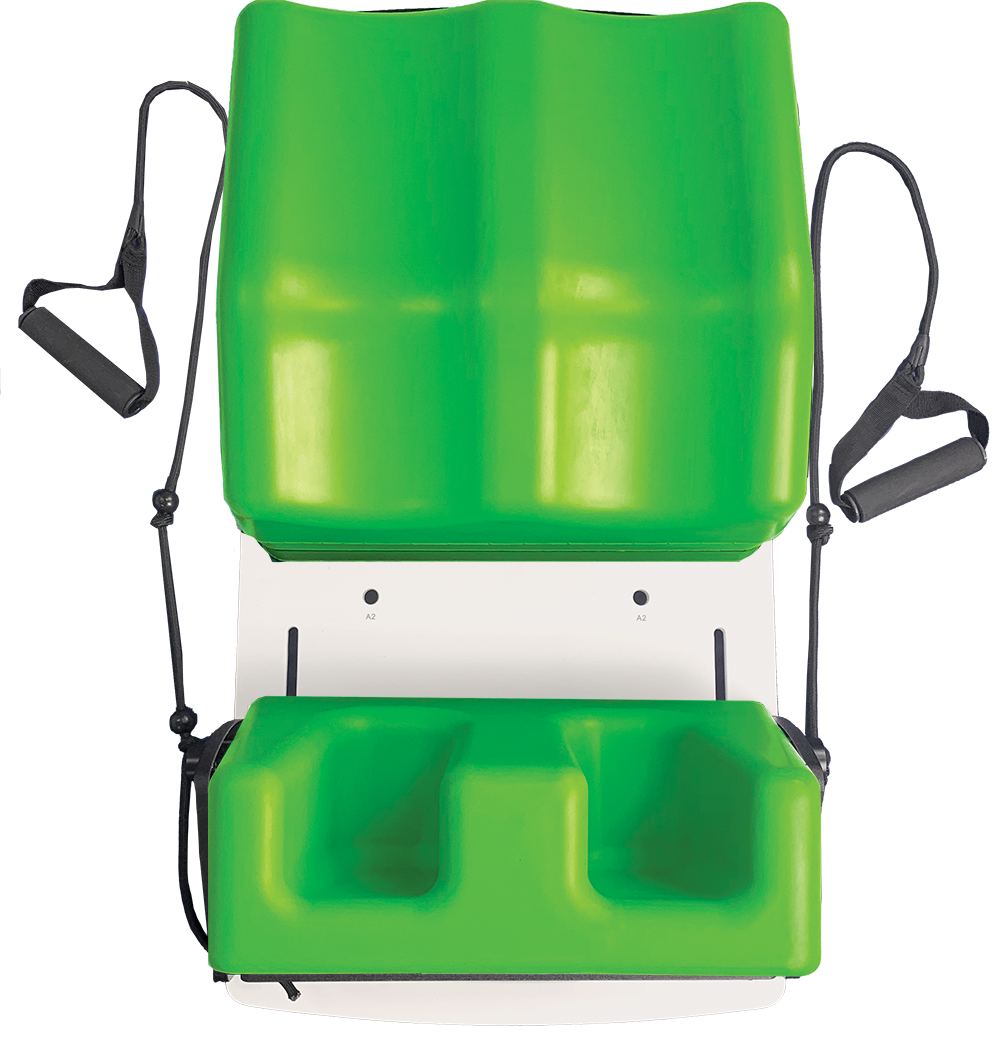

Leg Positioner

leg p.jpeg

R634-LCF

The Klarity Leg Positioner is a complete set that includes baseplate, leg support, two elevation blocks, foot cushion, and hand grips.  Sturdy foam cushions reduce patient fatigue, and the angle of the feet is fully indexable and adjustable. The acrylic hand grips are a comfortable option for shoulder suppression, and the ball and socket locking feature allows for reproducible tension in 5cm increments. Two elevation blocks are included for height adjustment.

86.4cm (Length) x 44.5cm (Width) x 26.7cm (Max Height)

Elevation wedges at 10/20/30

Also available as MR Compatible



The Klarity Leg Positioner includes:

Baseplate & Handgrips

Knee Cushion

Elevation Blocks


Foot Holder


Indexing Bars

turn lock.png

RNE-100AL

Turn-Lock Aluminum Indexing Bar for Exact™ Couch Top
3 mm thickness

RNE-100PL

Turn-Lock Plastic Indexing Bar for Exact™ Couch Top
6 mm thickness
MR Safe

spring lock.png

RNE-101AL

Spring-Lock Aluminum Indexing Bar for Exact™ Couch Top
3 mm thickness



RNE-102AL

Press-Lock Aluminum Indexing Bar for Exact™ Couch Top
3 mm thickness

RNE-102PL

Press-Lock Plastic Indexing Bar for Exact™ Couch Top
6 mm thickness
MR Safe

insert lock.png

RNE-103AL

Insert-Lock Aluminum Indexing Bar for iBEAM®, Novalis, and TomoTherapy® Couch Tops
3 mm thickness

RNE-103PL

Insert-Lock Plastic Indexing Bar for iBEAM®, Novalis, and TomoTherapy® Couch Tops
6 mm thickness
MR Safe
