MultiFix™ Baseplates

Klarity MultiFix™Baseplates: Easy and flexible solutions for head and head & shoulder placement

Klarity MultiFix™ Baseplates are lightweight and simple positioning solutions for head and head & shoulder placement. Made of strong and durable carbon fiber, the Head Only and Head & Shoulder MultiFixes™ are fully indexable, and compatible with both U-Frame and O-Type head masks. The baseplates can be used with standard Silverman headrests, and options are available for tilting support and prone positioning. Heat-activated AccuCushions® provide neck support and additional accessories are available, such as vacuum bags, carbon fiber and Silverman head rests, and indexing bars.


Head Only MultiFix™


R605-HCF

The Klarity Head Only MultiFix™ is a lightweight and simple positioning solution for head placement. Made of strong and durable carbon fiber, the Head Only MultiFix™ is fully indexable, and compatible with both U-Frame and O-Type head masks. The baseplate can be used with standard Silverman headrests, and is compatible with the R605-HPCF Prone Head MultiFix™, and the R602-DCF Tilting Head MultiFix™.

35.5cm (L) x 25.5cm (W)




Head & Shoulder MultiFix™


R605-SCF

The Klarity Head & Shoulder MultiFix™ is a lightweight, easily indexable positioning solution for head, neck, and shoulder placement. Made of strong and durable carbon fiber, the Head & Shoulder MultiFix™  is lightweight, fully indexable, and compatible with all U-Frame and O-Type masks. The baseplate can be used with standard Silverman headrests, and is compatible with the R605-HPCF Prone Head MultiFix™, and the R602-DCF Tilting Head MultiFix™

43.5cm (L) x 58cm (W-Shoulders) x 25.5cm (W-Head)


Tilting Head MultiFix™


R602-DCF  Carbon Fiber

R602-D   Acrylic

The Klarity Tilting Head MultiFix™ is an adaptable solution for positioning patients where a customized tilt is necessary.  The Tilting Head MultiFix™ can be used for prone or supine positioning.  It works with standard Silverman headrests as well as the R640-CPH2 Klarity Prone Head Support. It is compatible with both U-Frame and O-Type head masks. The baseplate is compatible with the R6400 Prone Breast System and the R605-SCF Head & Shoulder MultiFix™.

35cm (L) x 25.4cm (W)
Max. Height 27cm at 45˚
Tilting Angles: 5/10/15/20/25/30/35/40/45˚

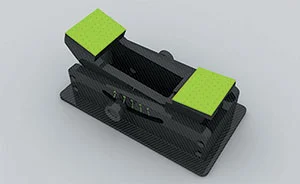

Prone Head MultiFix™


R605-HPCF

The Klarity Prone Head MultiFix™ is a lightweight, easily adjustable option for prone head placement. Made of strong and durable carbon fiber, the Prone Head MultiFix™ has a cleanable cushion for the forehead and chin. The baseplate is compatible with the R6400 Prone Breast System and the R605-SCF Head & Shoulder MultiFix™, which can both be used with U-frame and O-type Head Masks.

35.8cm (L) x 25.7cm (W)

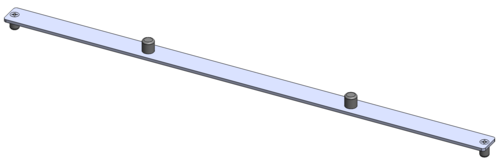

Indexing Bars

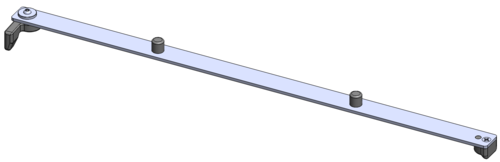

turn lock.png

RNE-100AL

Turn-Lock Aluminum Indexing Bar for Exact™ Couch Top
3 mm thickness

RNE-100PL

Turn-Lock Plastic Indexing Bar for Exact™ Couch Top
6 mm thickness
MR Safe

spring lock.png

RNE-101AL

Spring-Lock Aluminum Indexing Bar for Exact™ Couch Top
3 mm thickness

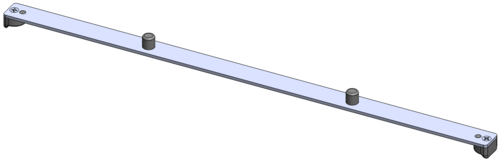

RNE-102AL

Press-Lock Aluminum Indexing Bar for Exact™ Couch Top
3 mm thickness

RNE-102PL

Press-Lock Plastic Indexing Bar for Exact™ Couch Top
6 mm thickness
MR Safe


RNE-103AL

Insert-Lock Aluminum Indexing Bar for iBEAM®, Novalis, and TomoTherapy® Couch Tops
3 mm thickness

RNE-103PL

Insert-Lock Plastic Indexing Bar for iBEAM®, Novalis, and TomoTherapy® Couch Tops
6 mm thickness
MR Safe


U-Frame EzeFrame™

U-Frame ContourFrame™

R430UC
Klarity EzeFrame™ Head Mask
42% perforation
3.2mm

12 masks/case




R450U
Klarity ContourFrame™ Head Mask
Contour perforation
2.4mm

12 masks/case


U-Frame U-Max™ WideFace Masks

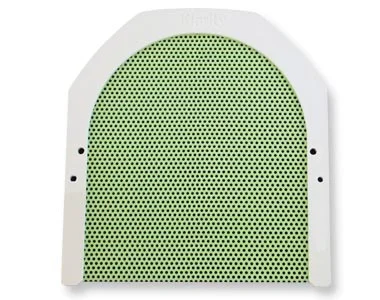

RG420E
Green U-Max™ WideFace Head Mask
36% perforation
2.4mm

RG430E
Green U-Max™ WideFace Head Mask
42% perforation
3.2mm

12 masks/case

RG421E
Green U-Max™ WideFace Extended Head Mask
36% perforation
2.4mm

RG431E
Green U-Max™ WideFace Extended Head Mask
42% perforation
3.2mm

12 masks/case

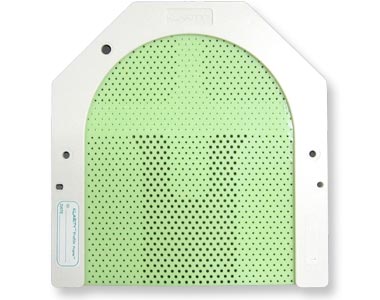

U-Frame ProfileFrame™ Masks

RG420W
Green ProfileFrame™ Head Mask
36% perforation
2.4mm

RG430W
Green ProfileFrame™ Head Mask
42% perforation
3.2mm

12 masks/case


R420W
White ProfileFrame™ Head Mask
36% perforation
2.4mm

R430W
White ProfileFrame™ Head Mask
42% perforation
3.2mm

12 masks/case

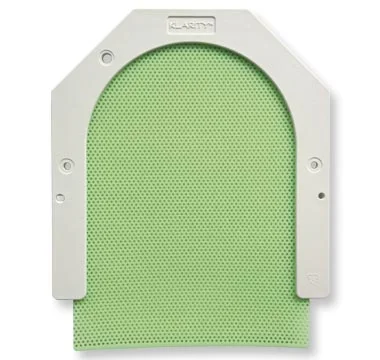

RG421W
Green ProfileFrame™ Extended Head Mask
36% perforation
2.4mm

RG431W
Green ProfileFrame™ Extended Head Mask
42% perforation
3.2mm

12 masks/case

R421W
White ProfileFrame™ Extended Head Mask
36% perforation
2.4mm

R431W
White ProfileFrame™ Extended Head Mask
42% perforation
3.2mm

12 masks/case



RG420-1W
Green ProfileFrame™ Head Mask
AccuPerf™
2.4mm

RG430-1W
Green ProfileFrame™ Head Mask
AccuPerf™
3.2mm

12 masks/case

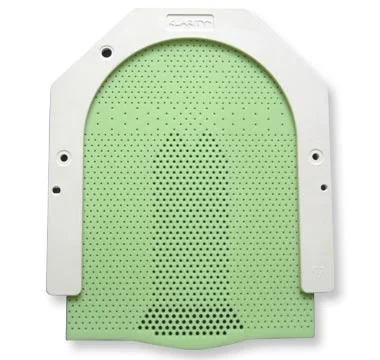

RG464-1W
Green ProfileFrame™ Extended Head Mask
AccuPerf™
3.2mm

12 masks/case


3-Point O-Type Head Masks


RDLG105-2412C
LiteGreen™ O-Type 3-Point Head Mask (with nosehole)
12% perforation
2.4mm

10 masks/case


RDLG107-2412C
LiteGreen™ O-Type 3-Point Rounded Head Mask (with nosehole)
12% perforation
2.4mm

10 masks/case


 R461-8STF

R461-8STF

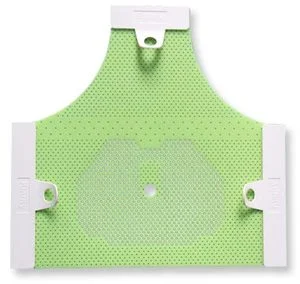

RDG105-24A
Green O-Type 3-Point Head Mask (with nosehole)
AccuPerf™
2.4mm

RDG105-32A
Green O-Type 3-Point Head Mask (with nosehole)
AccuPerf™
3.2mm

10 masks/case


RDG107-24A
Green O-Type 3-Point Rounded Head Mask (with nosehole)
AccuPerf™
2.4mm

RDG107-32A
Green O-Type 3-Point Rounded Head Mask (with nosehole)
AccuPerf™
3.2mm

10 masks/case


5-Point O-Type Head & Shoulder Masks


RDG207-24A
Green O-Type 5-Point Head & Shoulder Mask (with nosehole)
AccuPerf™
2.4mm

RDG207-32A
Green O-Type 5-Point Head & Shoulder Mask (with nosehole)
AccuPerf™
3.2mm

10 masks/case

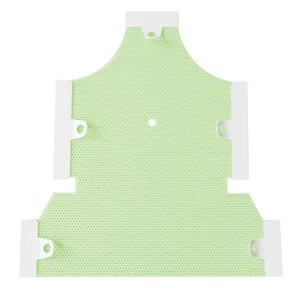

RDLG207-2412C
LiteGreen™ O-Type 5-PointHead & Shoulder Mask (with nosehole)
2.4mm

10 masks/case


AccuCushions®

Klarity AccuCushions® are odorless, head-activated support cushions for the head and neck. AccuCushions® can be heded in an oven or waterbath. They offer comfortable, highly rigid customized support.  > AccuCushion Product Information

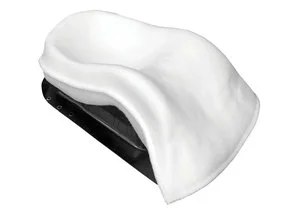

accucuc mold.jpg

R550-U
U-Cushion™: A Universal AccuCushion®
24x30cm

Klarity’s U-Cushion™ is our best-selling AccuCushion®. The curved top allows the therapist to contour the cushion to the patient with minimal adjustment. This eliminates the need to tuck away corners and enables the mask frame to come down evenly and securely. The U-Cushion™ indexes to both the crown of the head and the Silverman headrest, reducing pitch and providing even greater precision.


R550-M
Standard AccuCushion®
20x25cm

Our standard AccuCushion® is a comfortable support cushion. It is designed to fit over a Silverman for customized immobilization.



R550-M1
20x30cm

The R550-M1 has a slightly wider base of support for greater support under the head and neck as well as improved indexing. The M1 works well on the Q1 headrest or a standard Silverman headrest.

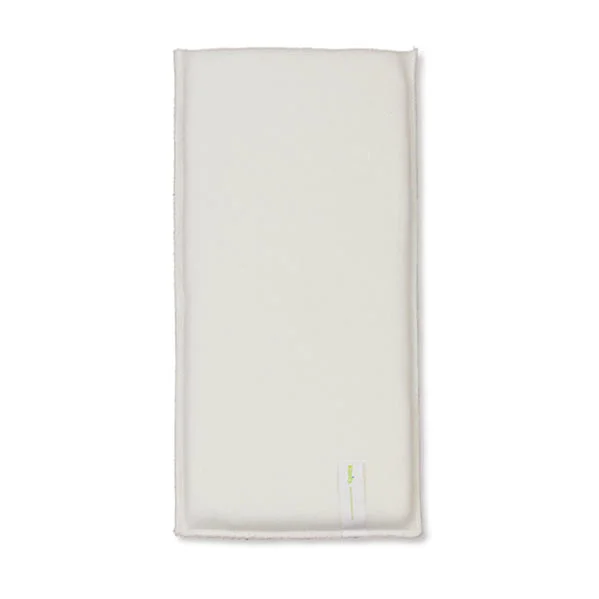

R550-L
20x43cm

The R550-L is a long, versatile AccuCushion® that offers multiple types of custom support. It can be used under the head and neck with a standard Silverman headrest, providing a long line of support that extends from the C-spine to the crown of the head. It can also be used to mold around the arm and wrist as well as other extremities that require customized positioning.


Head Supports

The MultiFix™ Baseplates are compatible with standard Silverman Head supports, as well as the Klarity Prone Face Support


R507-CF  Carbon Fiber Head Support Set of 6
R507-ACF  Carbon Fiber A
R507-BCF  Carbon Fiber B
R507-CCF  Carbon Fiber C
R507-DCF  Carbon Fiber D
R507-ECF  Carbon Fiber E
R507-FCF  Carbon Fiber F

Carbon Fiber Head Supports fit a variety of tabletop and couch types. They can be ordered individually, or as a set of six for all different heights. Carbon Fiber Head Supports index to standard silverman pins, and can be used with any baseplate that uses standard silvermans. The carbon fiber material is extra durable and lightweight.

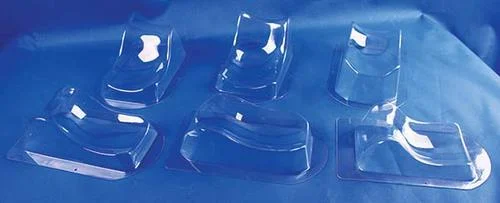

R507  Silverman Head Support Set of 6
R507-A  Silverman A
R507-B  Silverman B
R507-C  Silverman C
R507-D  Silverman D
R507-E  Silverman E
R507-F  Silverman F

Clear Silverman Head Supports fit a variety of tabletop and couch types. Silverman head supports are sold individually, or as a set of six, with six different heights for customization.

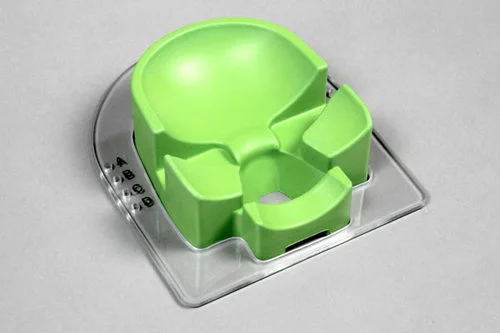

R640-CPH2
Prone Head Cushion with Indexing Plate

Klarity offers an adaptable option for prone head support.  The cushioning is soft and comfortable and the eye area is open to accommodate most head sizes.  The foam face cushion is attached to a clear plastic frame that indexes to the same pins as a standard silverman.



Accessories

vacbag h&S.jpg

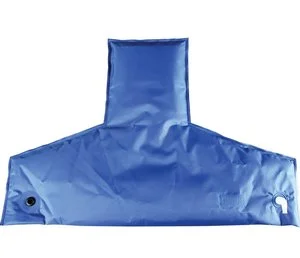

Vacuum Bags


Ovens
