Prone Breast System

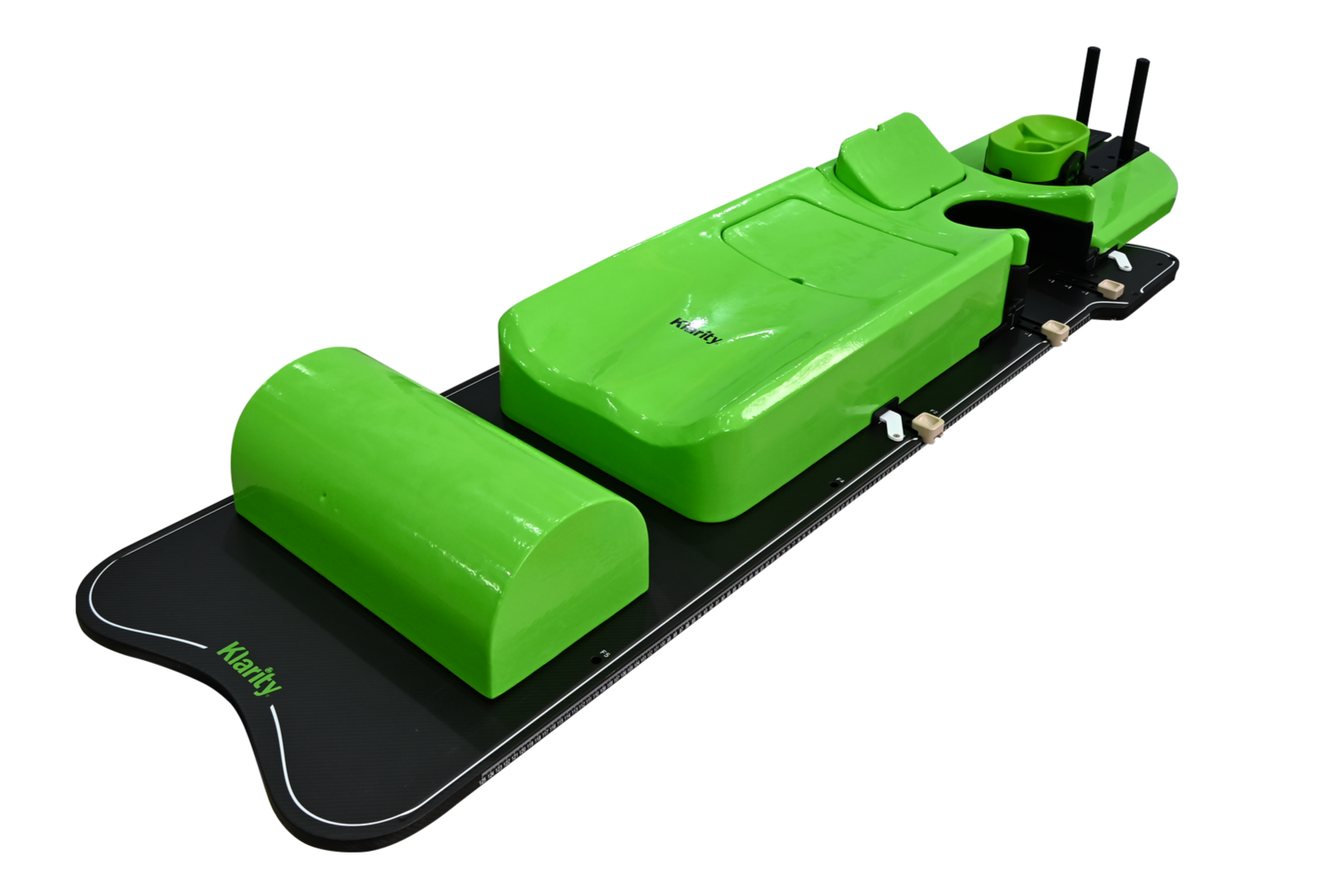

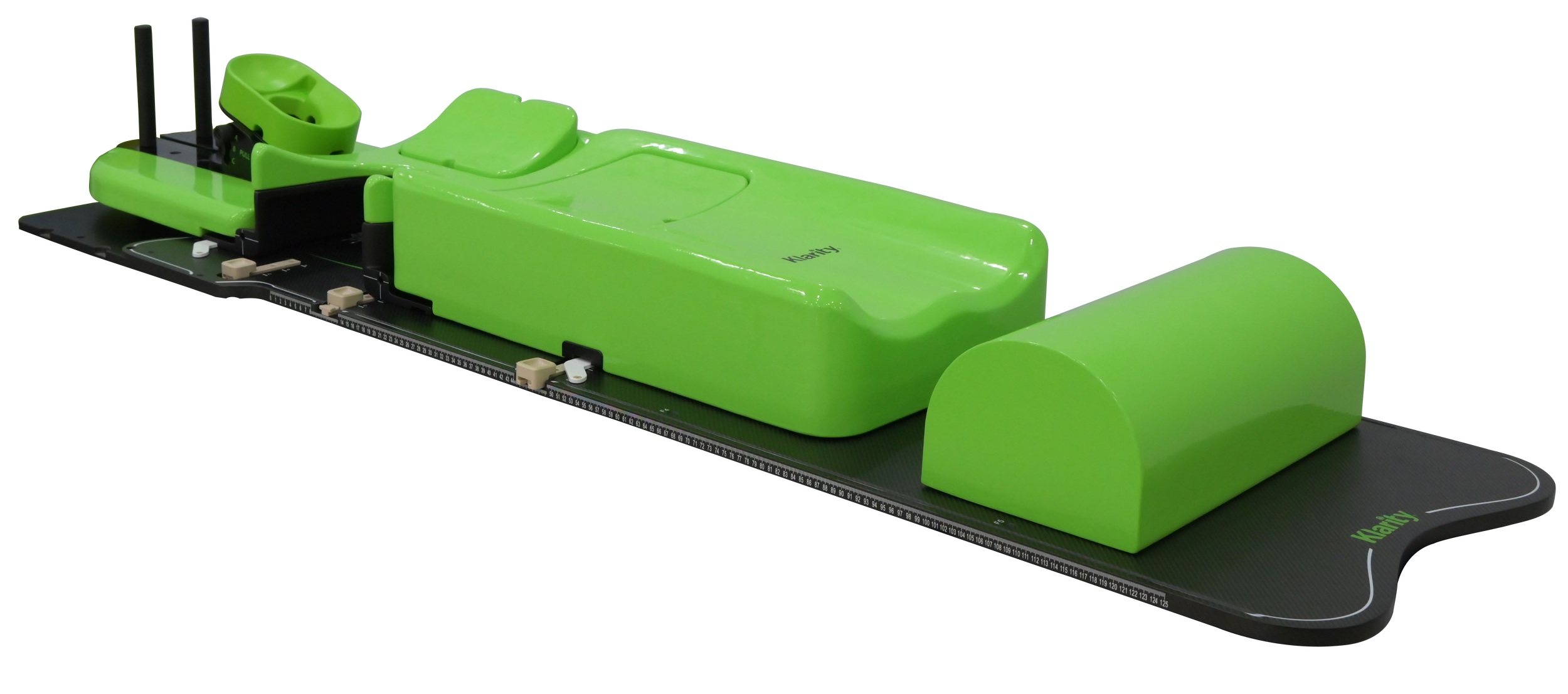

The Klarity Prone Breast System: a streamlined solution for prone breast positioning with customized contralateral indexing

The new Klarity Prone Breast System is an improved, modern system for prone breast treatment. The Klarity Prone Breast System is cost effective and offers advanced indexing and superior control for patients of all sizes. The system has an elegant design for quick, streamlined setup, as well as advanced options for higher accuracy and custom conformity

The System comes with:  prone and lateral head placement options; flat, wedge, and customized contralateral breast support options, optional upper and lower vacuum bags, and elevation blocks for adjusting baseplate height.

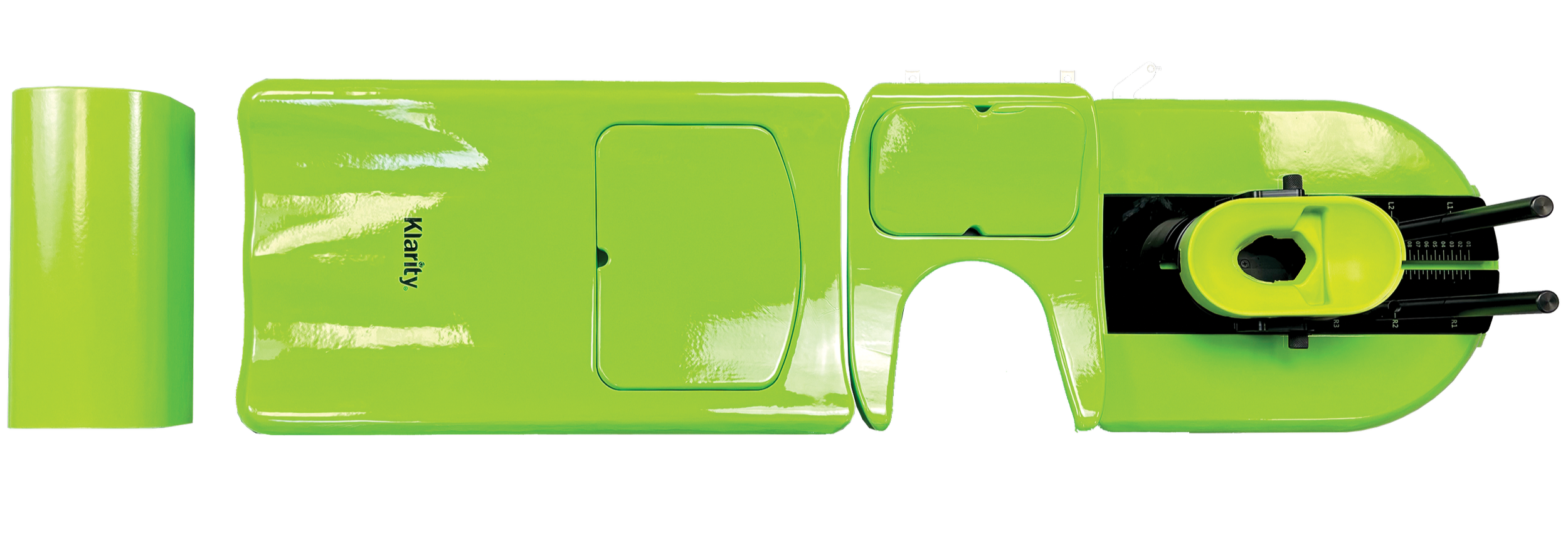

Prone Breast System

R6400

Reversible for Right/Left treatments. Available in Carbon Fiber or Acrylic. Gentle contoured edges provide heightened comfort. The baseplate attaches to indexed elevation blocks. The elevation blocks can be removed or added as needed.

198 x 53 x 2.2 cm Baseplate

53 x 20 x 7.6 cm Tall Elevation Blocks (6)

53 x 20 x 3.7cm Short Elevation Blocks (3)


Head Support

R640-CPH2

Prone Head Support. The soft foam face cushion is attached to a clear plastic frame and indexes to standard Silverman pins.

included with R6400

Lateral Head Support

A reusable C-shaped cushion is easily rotated for right- and left-side treatments. Indexes to standard Silverman pins.

Included with R6400


tilting head.jpeg

R602

Indexed Tilting Head Support allows for custom head placement and tilt. Can be used with U-frame or O-type head masks.

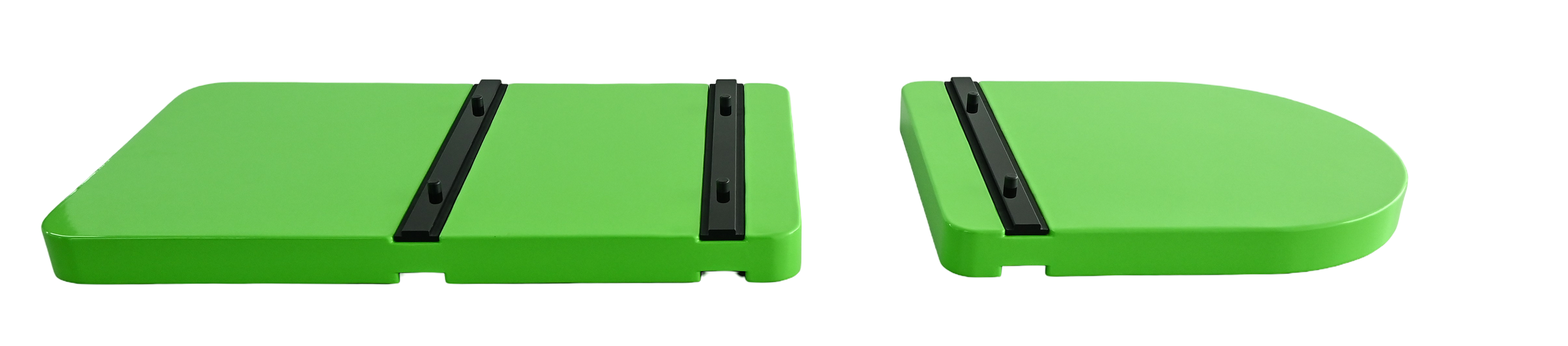

Contralateral Breast Support

prone breast flat support  IMG_3937_CROP.jpg

Flat Contralateral Cushion

A standard, flat cushion provides even support for the contralateral breast. Easily cleanable for multi-patient use.

Included with R6400

wedgesupport3 copy.jpg

Wedge Contralateral Cushions

Two standard, reusable wedge cushions allow for angled placement and support. The blue wedge supports are easily cleanable and standardized for quick patient turnover.

Included with R6400


wedge accu_IMG_3942.jpg

R550-W1

Klarity's Wedge AccuCushions® provide customized, highly reproducible support. The AccuCushion® molds directly to the patient's torso and indexes to the table for increased reproducibility. AccuCushions® are one-per-patient, but can be remolded if needed.

Included with R6400



Vacuum Bags


R7636-11.5BBA

Upper Arm Vacuum Bag
90x50cm
25.5x26.5cm opening
11.5 liter fill

The Upper Arm Vacuum Bag allows for easy head placement while indexing and supporting the arms. The Vacuum Bag indexes directly to the Baseplate.

Included with R6400

lower vac.jpeg

R7507-48BB4

Lower Body Vacuum Bag
81x118cm
48 liter fill

Secure Vacuum Bag for comfortable leg and pelvis positioning. Indexes directly to the baseplate.




Indexing Bars

turn lock.png

RNE-100AL

Turn-Lock Aluminum Indexing Bar for Exact™ Couch Top
3 mm thickness

RNE-100PL

Turn-Lock Plastic Indexing Bar for Exact™ Couch Top
6 mm thickness
MR Safe

spring lock.png

RNE-101AL

Spring-Lock Aluminum Indexing Bar for Exact™ Couch Top
3 mm thickness



RNE-102AL

Press-Lock Aluminum Indexing Bar for Exact™ Couch Top
3 mm thickness

RNE-102PL

Press-Lock Plastic Indexing Bar for Exact™ Couch Top
6 mm thickness
MR Safe

insert lock.png

RNE-103AL

Insert-Lock Aluminum Indexing Bar for iBEAM®, Novalis, and TomoTherapy® Couch Tops
3 mm thickness

RNE-103PL

Insert-Lock Plastic Indexing Bar for iBEAM®, Novalis, and TomoTherapy® Couch Tops
6 mm thickness
MR Safe


Accessories


U-Frame Masks


O-type Masks


Ovens
