SRS Masks
With New Breakaway™ Shims!
-

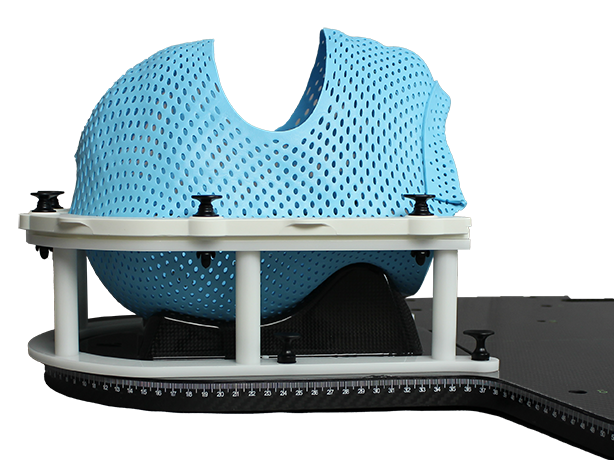

Klarity SRS Masks are specifically designed to help achieve precise patient positioning for Stereotactic Radiosurgery. The two-piece mask system allows for both anterior and posterior support while providing a 0-4mm range of adjustment.
Compatibility:
CQ Encompass System
Breakaway™ Shim System:
Klarity SRS Masks use Breakaway™ Shims to adjust the mask up or down in 1mm increments. Breakaway™ Shims work by separating the shims along the perforated lines. The height between the posterior and anterior mask can be adjusted between 0-4mm by adding or removing full shims or portions of shims. The result is an intuitive shimming technique for secure, customizable treatment.
The Klarity BiteLok®:
Klarity SRS masks are compatible with the Klarity BiteLok®, an optional immobilization tool to further decrease patient movement and augment tissue sparing capabilities.
-
-
MR Safe
EU MDR / ISO / FDA compliant
Klarity Blue™ SRS Mask Sets
Our strongest mask with the least amount of shrinkage
S-2004
Klarity Blue™ SRS Open Face Mask Set 10% perforation 3.2mm
Contents:
Posterior Mask
Open Face Extended Anterior Mask
Breakaway™ Shim System
mask sets sold individually
S-2006
Klarity Blue™ SRS Open Face Anterior Mask 10% perforation 3.2mm
Contents:
Open Face Extended Anterior Mask
Breakaway™ Shim System
mask sets sold individually
Requires use of the RSX-TZ-16 SRS Posterior Frame (sold separately)
RSX-TZ-16
Klarity SRS Posterior Mask Frame
S-2005
Klarity Blue™ SRS Mask Set 10% perforation 3.2mm
Contents:
Posterior Mask
Extended Anterior Mask
Breakaway™ Shim System
mask sets sold individually

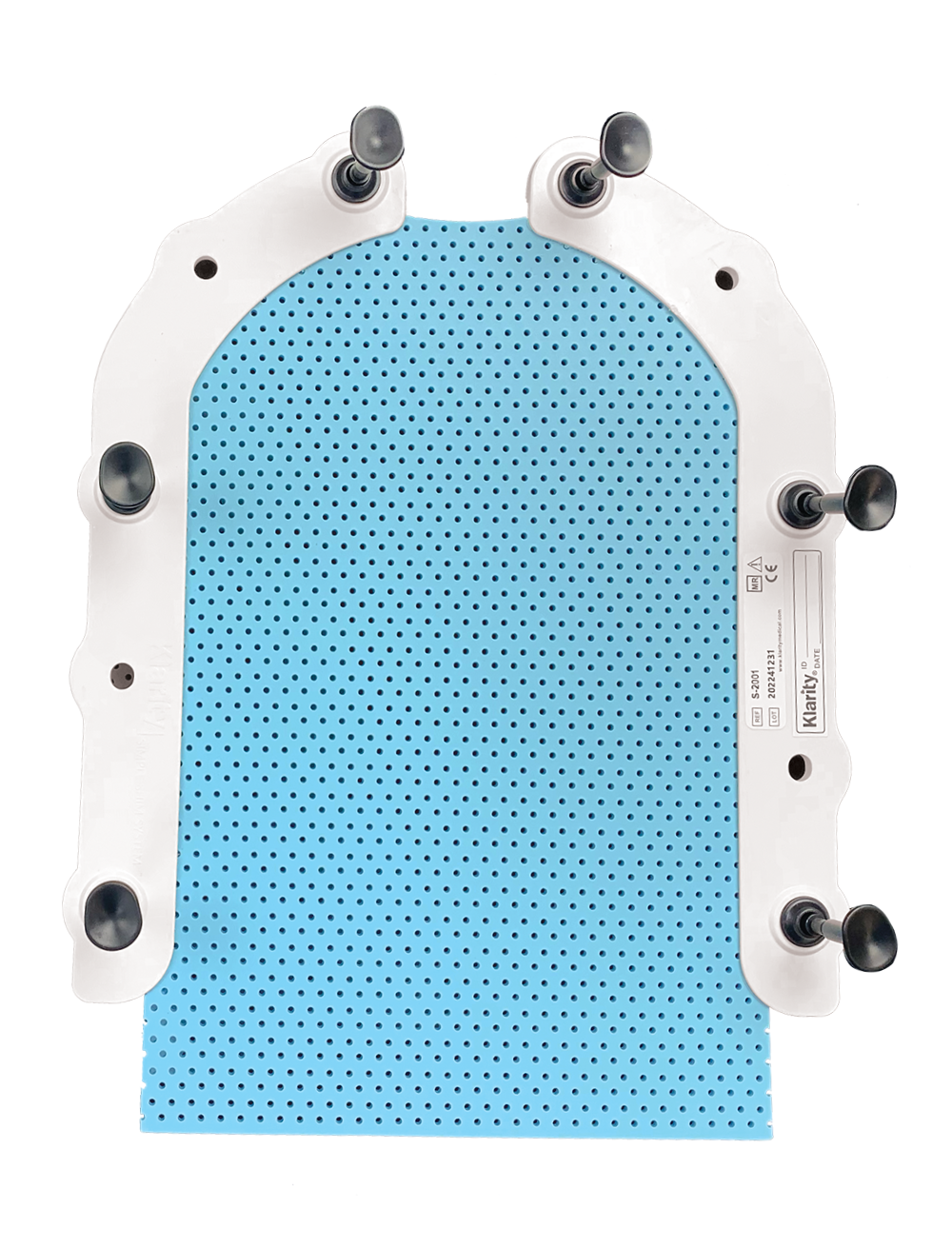

S-2007
Klarity Blue™ SRS Anterior Mask 10% perforation 3.2mm
Contents:
Extended Anterior Mask
Breakaway™ Shim System
mask sets sold individually
Requires use of the RSX-TZ-16 SRS Posterior Frame (sold separately)
SRS Accessories

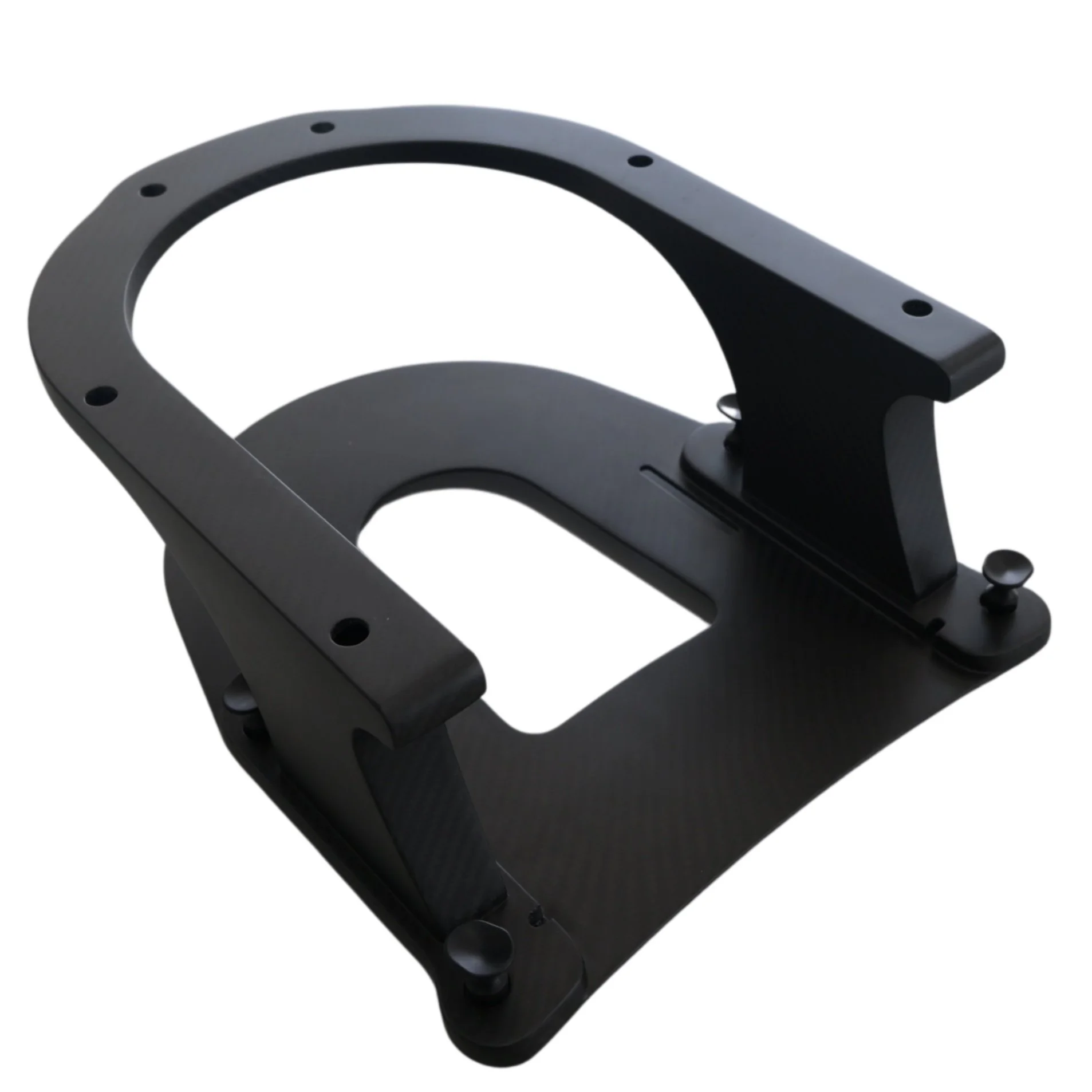

S-20CF
SRS Adaptor, Carbon Fiber
S-20A
SRS Adaptor, Plastic (MR)
The Klarity SRS Adaptor is a simple attachment that fits on top of your existing s-type baseplate. The SRS Adaptor clicks into the standard S-type mask holes of the baseplate just like a mask. This allows your S-board to be used with SRS Masks.
sold individually
How to use Klarity Breakaway™ Shims
Insert 6 pins into the top mask as shown in the image below. Lift pins upward to the disengaged position.
Place the desired number of shims onto the bottom mask frame.
It is recommended to start with 2 shims.
Shims can be removed or added (up to 4) during the course of treatment.

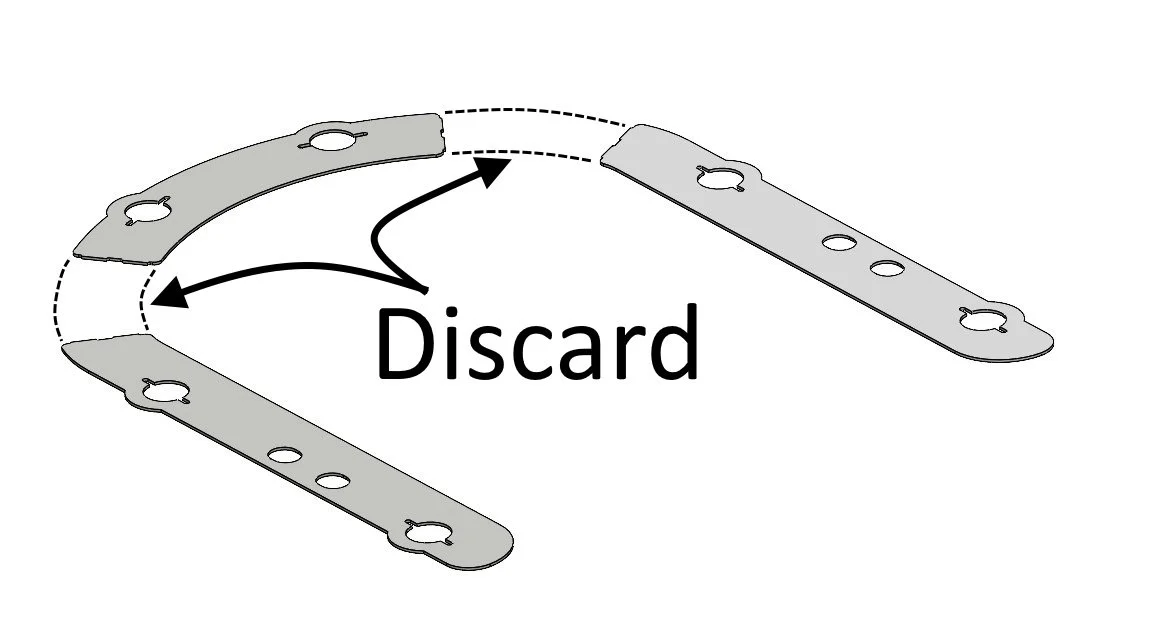

Each shim can be separated into 3 pieces (one top and two sides).
This will be used if sections of the mask require localized adjustment.

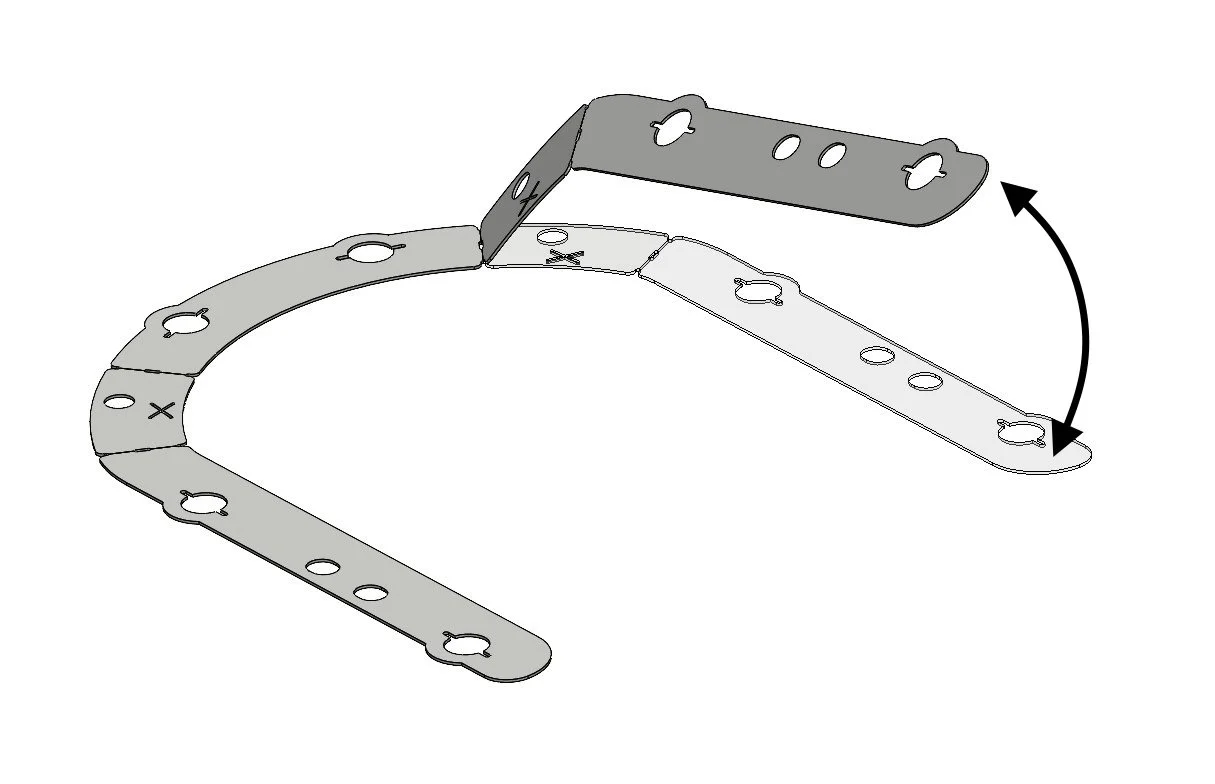

To separate off the pieces, bend the shim back and forth along the perforated line.
Remove the small piece labeled with an “X”.
Each shim is 1mm thick.
Height can be adjusted with full or partial shims from 0mm (no shims) up to 4mm (4 shims).
