Uno™ All In One System

Precision in Every Position

Brain Icon_Treatment Site
Head and Neck Icon_Treatment Site
SRS Icon_Treatment Site
Breast Icon_Treatment Site
Thorax Icon_Treatment Site
Abdomen Icon_Treatment Site
Pelvis Icon_Treatment Site
SBRT Icon_Treatment Site
Upper Extremities Icon_Treatment Site
Lower Extremities Icon_Treatment Site
Skin Icon_Treatment Site

  • The Klarity Uno™ is an all in one, fully customizable baseplate system designed to support a wide range of treatment types with precision and ease. Available in three sizes, the Uno™ accommodates standard setups as well as narrow bore machines and the Elekta HexaPod system. Each size is also offered in an MR-compatible version.

    With modular components that adapt to different treatment modalities, the Uno™ offers unmatched flexibility. Components can be used individually or combined into specialized kits, such as the SBRT setup. This versatility allows for precise patient positioning across intracranial, whole brain, head & neck, torso, SRS, supine and prone breast, and SBRT treatments.

    The Uno™ seamlessly integrates with Klarity positioning accessories, including S-type masks, Silverman head supports, vacuum bags, Klarity Cushions™, and more. It is compatible with the Klarity SRS Adaptor and Klarity Breast and Thoracic masks, providing a comprehensive solution for diverse clinical needs.

  • Please see below for product specifications.

    • EU MDR / ISO / FDA compliant

CT Modality Icon
MR Modality Icon
Photon Therapy Modality Icon
Electron Therapy Modality Icon
Veterinary Therapy Modality Icon

The Uno™ Baseplate

The Uno™ is available in 3 sizes for bore compatibility. All Uno™ Baseplates are also available as MR Compatible.

Narrow

R616-NCF Klarity Uno™ Narrow Baseplate, carbon fiber, black
R616-NKF Klarity Uno™ Narrow Baseplate, MR-compatible kevlar, white

  • Product IDs:

    • R616-NCF* (Carbon Fiber) *Special order item. Please allow extra time for delivery.

    • R616-NKF* (MR-Compatible Kevlar) *Special order item. Please allow extra time for delivery.

    Dimensions: 199.5cm (L) x 54cm (W)

    Capacity: Supports up to 250kg

    • Narrow Uno™ Baseplate

    • Head Support Adaptor

    • Lower Hand Grips

    • Groin Lock

  • System Compatibility:

    • Narrow bore CT and MR

    • Elekta Unity

    Mask Compatibility:

    Uno™ Component Compatibility:

    • All Uno™ components are compatible with the Narrow Uno™ Baseplate

Standard

Klarity Uno™ Standard Baseplate R616-SKFA, MR-compatible kevlar, white
R616-SCFA Klarity Uno™ Standard Baseplate, carbon fiber, black

HexaPod

Klarity Uno™ HexaPod Baseplate R616-SCF1A, carbon fiber, black
Klarity Uno™ HexaPod Baseplate R616-SKF1A, MR-compatible kevlar, white

  • Product IDs:

    • R616-SCF1A* (Carbon Fiber) *Special order item. Please allow extra time for delivery.

    • R616-SKF1A* (MR-Compatible Kevlar) *Special order item. Please allow extra time for delivery.

    Dimensions: 199.5cm (L) x 61cm (Shoulder W) x 47.8cm (Body W)

    Capacity: Supports up to 250kg

    • HexaPod Uno™ Baseplate

    • Head Support Adaptor

    • Lower Hand Grips

    • Groin Lock

  • System Compatibility:

    • Elekta HexaPod

    Mask Compatibility:

    Uno™ Component Compatibility:

    • R632-NTCF2/R632-NTKF2 Wingboard

    • R616-WCFA Overhead Arm Positioner

    • S-20A SRS Adaptor

    • R616-L3 Foot Positioner

    • R616-AIR Compression Belt

Uno™ Components

All components are sold separately

Wingboard

Klarity Wingboard R616-PK2, MR-compatible kevlar, white
Klarity Wingboard R616-PC2, carbon fiber, black

  • The Wingboard attaches to the top of the Uno™ and can also be used independently on a couch top.

    Product IDs:

    • R616-PC2 (Carbon Fiber)

    • R616-PK2* (MR Compatible Kevlar) *special order only

    Dimensions: 62cm x 57cm

    • Wingboard

    • T-bar Handles

    • U-grip Handles

    • Mask Adaptor

    • Head Support

  • Uno™ Compatibility:

    • Standard

    • Narrow

    • HexaPod

    Mask Compatibility:

    Other Compatibility:

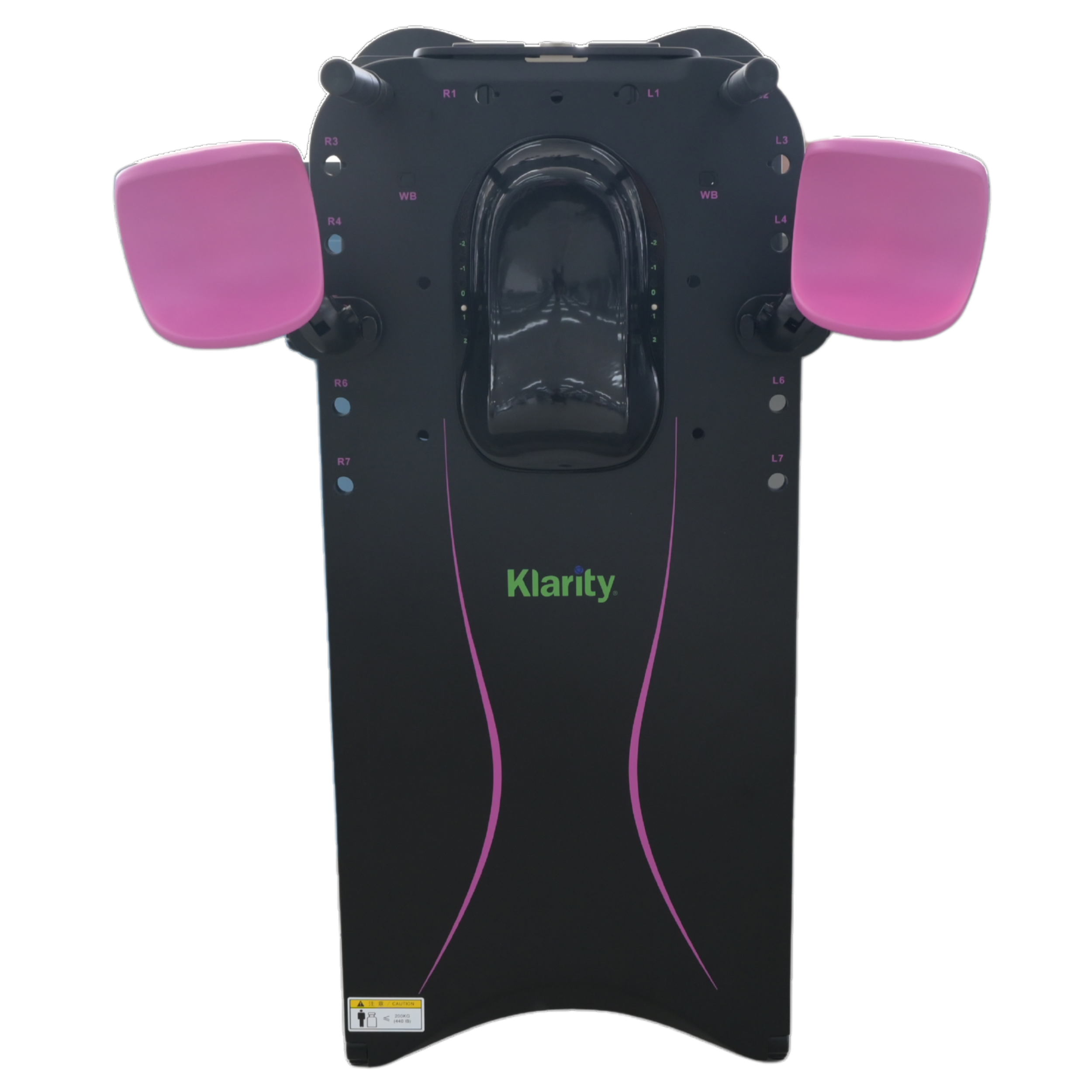

Tilting Board

Klarity Uno™ Tilting Board R616-PC3, carbon fiber, black, front view with arm cups
Klarity Uno™ Tilting Board R616-PC3, carbon fiber, tilting board with arm cups, side view of elevations

  • The Tilting Board indexes to the Uno™ Baseplate or to a couchtop to provide elevation options for treatment.

    Product ID:

    • R616-PC3 (Carbon Fiber) Elevation Angles 5˚, 10˚, 15˚, 20˚

    • R616-PK3 (MR Compatible Kevlar) Elevation Angles 5˚, 10˚, 15˚, 20˚ *special order only

    Dimensions: 108cm x 41cm

    • Tilting Board Baseplate

    • 2 Arm Cups

    • 2 Wrist Cups (Carbon Fiber Only)

    • Upper Hand Grips

    • Lower Hand Grips

    • Base Cushion

    • Upper Indexing Bar

    • Lower Indexing Bar

  • Uno™ Compatibility:

    • Standard

    • Narrow

    • HexaPod (Requires use of supplemental indexing bar R616-PDCF-S4)

    Other Compatibility:

    • Can be indexed directly on a couchtop

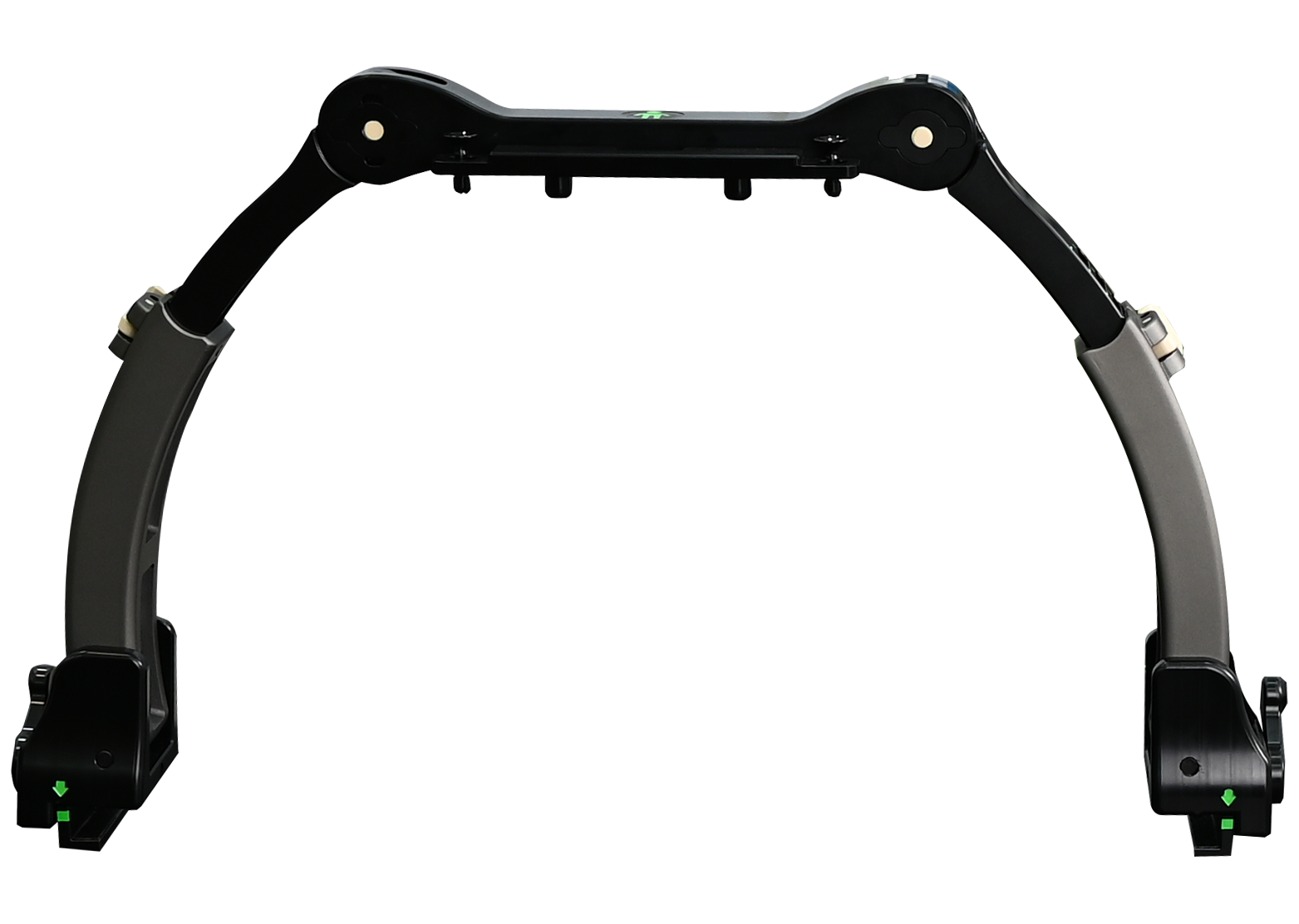

Overhead Arm Positioner

R616-PC1 Klarity Uno™ Overhead Arm Positioner, carbon fiber, overhead arm positioner with pink arm cups

  • The Overhead Arm Positioner secures around the top of the Uno.

    Product ID:

    • R616-PC1 (Carbon Fiber)

    Dimensions: 61cm x 47cm

    • Overhead Arm Positioner Baseplate

    • 2 Arm Cups

    • 2 Wrist Cups

    • 2 Hand Grips

  • Uno™ Compatibility:

    • Standard

    • Narrow

    • HexaPod

SRS Adaptor

Klarity SRS Adaptor S-20A, MR-compatible plastic, white
Klarity SRS Adaptor S-20CF, carbon fiber, black

  • The SRS Adaptor clips in to the baseplate just like a mask for easy SRS compatibility.

    Product ID:

    • S-20A (MR Compatible Plastic)

    • S-20CF (Carbon Fiber)

    • SRS Adaptor

  • Uno™ Compatibility:

    • Standard

    • Narrow

    • HexaPod

    Mask Compatibility:

    Other Compatibility:

    • Compatible with all standard S-type baseplates

Klarity Uno™ Compression Belt R616-AIR, blue compression belt with hand pump

Compression Belt

  • An updated hand pump offers a more ergonomic user experience. The velcro strap fits a variety of patient sizes.

    Product ID:

    • R616-AIR

    • Compression Belt

    • Hand Pump

  • Uno™ Compatibility:

    • Standard

    • Narrow

    • Hexapod

Knee Positioner

Klarity Uno™ Knee Positioner R616-L1, MR-conditional, black foam

  • The Knee Positioner can be set anywhere along the Uno™ baseplate.

    Product ID:

    • R616-L1 (MR Conditional)

    • Knee Positioner Baseplate

    • Knee Riser

    • 2 Elevation Blocks

  • Uno™ Compatibility:

    • Standard

    • Narrow

Klarity Uno™ Foot Positioner R616-L3, black foam

Foot Positioner

  • The Foot Positioner can be set anywhere along the Uno™ baseplate.

    Product ID:

    • R616-L3 (MR Conditional)

    Elevation Angles: 0˚, 10˚, 20˚, 30˚

    • Foot Positioner Baseplate

    • Foot Holder

  • Uno™ Compatibility:

    • Standard

    • Narrow

    • HexaPod

Abdominal Bridge

  • The Abdominal Bridge can be attached anywhere along the Uno™ Baseplate. It features multi-dimensional adjustability and can be fitted with either an abdominal paddle or an inflatable air bag.

    Product ID:

    • R616-PC4 (MR Conditional)

    • Belly Bridge

    • Belly Paddle

    • Inflatable Belly Paddle

    • Hand Pump

  • Uno™ Compatibility:

    • Standard

    • Narrow

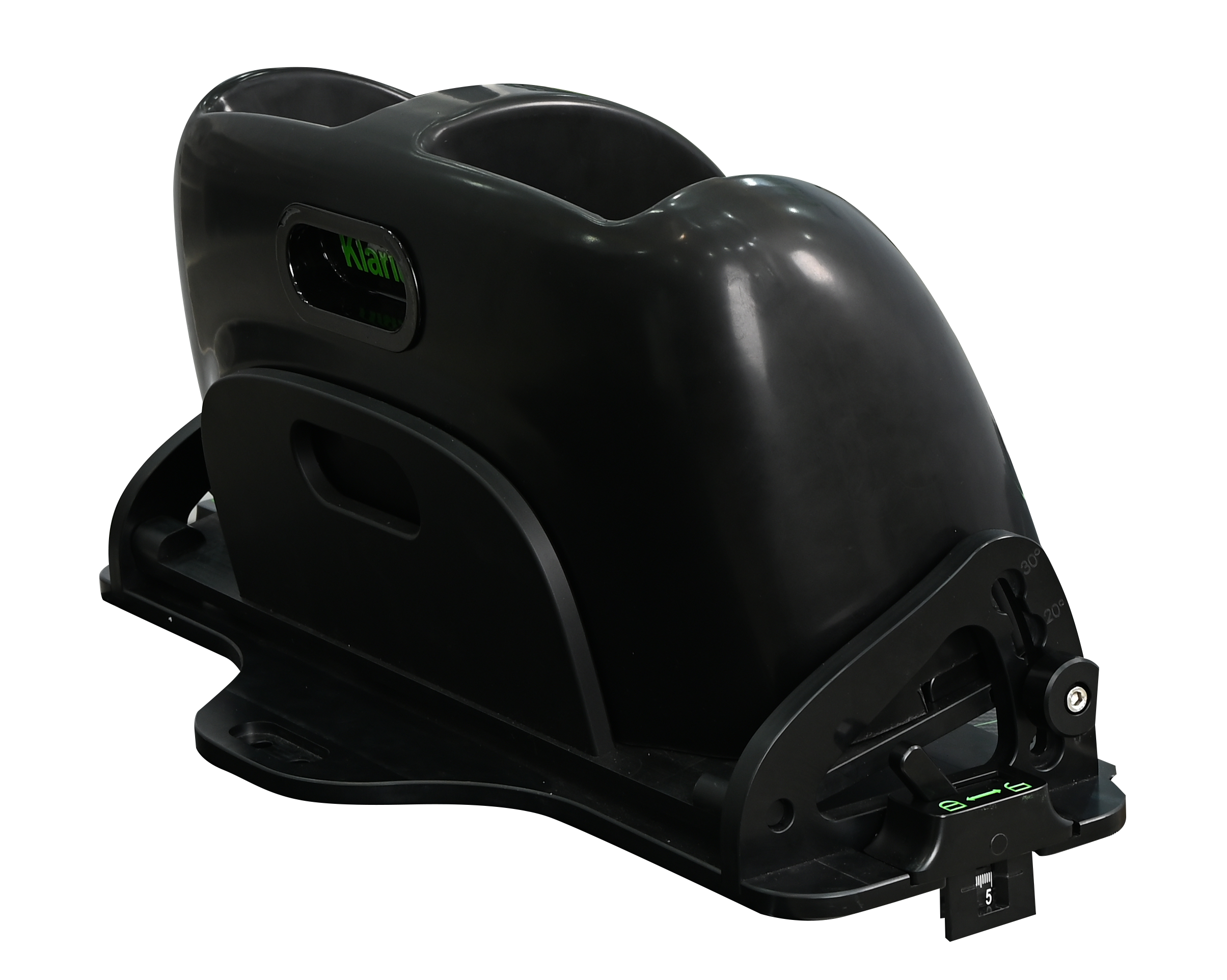

Knee Bridge

  • The Knee Bridge can be attached anywhere along the Uno™ Baseplate. It features multi-dimensional adjustability and is compatible with the R7131-5NLTC Knee Bridge Vacuum Bag.

    Product ID:

    • R616-SCF2-2 (MR Conditional)

    • Knee Bridge

  • Uno™ Compatibility:

    • Standard

    • Narrow

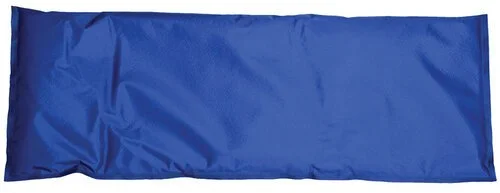

Knee Bridge Vacuum Bag

Klarity Knee Bridge Vacuum Bag R7131-5NLTC

  • Knee Bridge Vacuum Bag

    Product ID:

    • R7131-5NLTC

    Dimensions: 28cm x 80cm

    Fill Level: 5 liters

    • Knee Bridge Vacuum Bag

  • Compatible with the R616-SCF2-2 Uno™ Knee Bridge

SBRT Vacuum Bag

Klarity SBRT Vacuum Bag R7644-32.5BC, two chambers and indexing bar

  • SBRT Vacuum Bag with with Two Chambers and Indexing Bar

    Product ID:

    • R7644-32.5BC

    Dimensions: 136.5cm x 90cm

    Fill Level: 32.5 liters

    • SBRT Vacuum Bag with 2 Chambers and Indexing Bar

  • Uno™ Compatibility:

    • Standard

    • Narrow

    • HexaPod

    Other Compatibility:

    • Indexes via standard indexing bar holes for general use

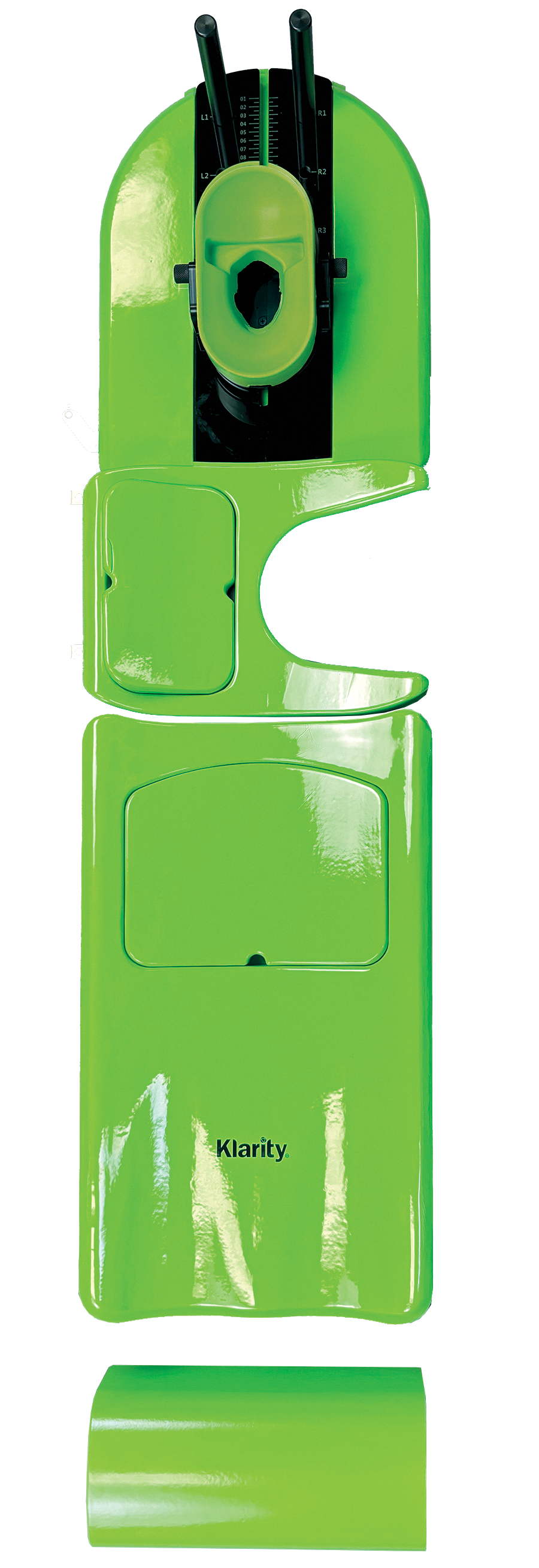

Prone Breast Cushion Set

Klarity Uno™ Prone Breast Cushion Set R616-BE5, green foam with tilting prone head support

  • The Prone Breast Cushion Set sits on top of the Uno™ and can also be used independently on a couch top.

    Product ID:

    • R616-BE5 (Carbon Fiber)

    Dimensions: 146cm (length) x 40.5 (width) x 22.7cm (height)

    • Upper Prone Cushion

    • Tilting Prone Head Support

    • Upper Hand Grips

    • Flippable Breast Cushion

    • Lower Prone Cushion with Removable Belly Hole Cushion

    • Leg Bolster

  • Uno™ Compatibility:

    • Standard

    • Narrow

    • HexaPod (requires two R616-AE5-SP1 Indexing Bars, sold separately)

    Mask Compatibility:

    Other Compatibility:

    • Can be indexed directly on a couchtop

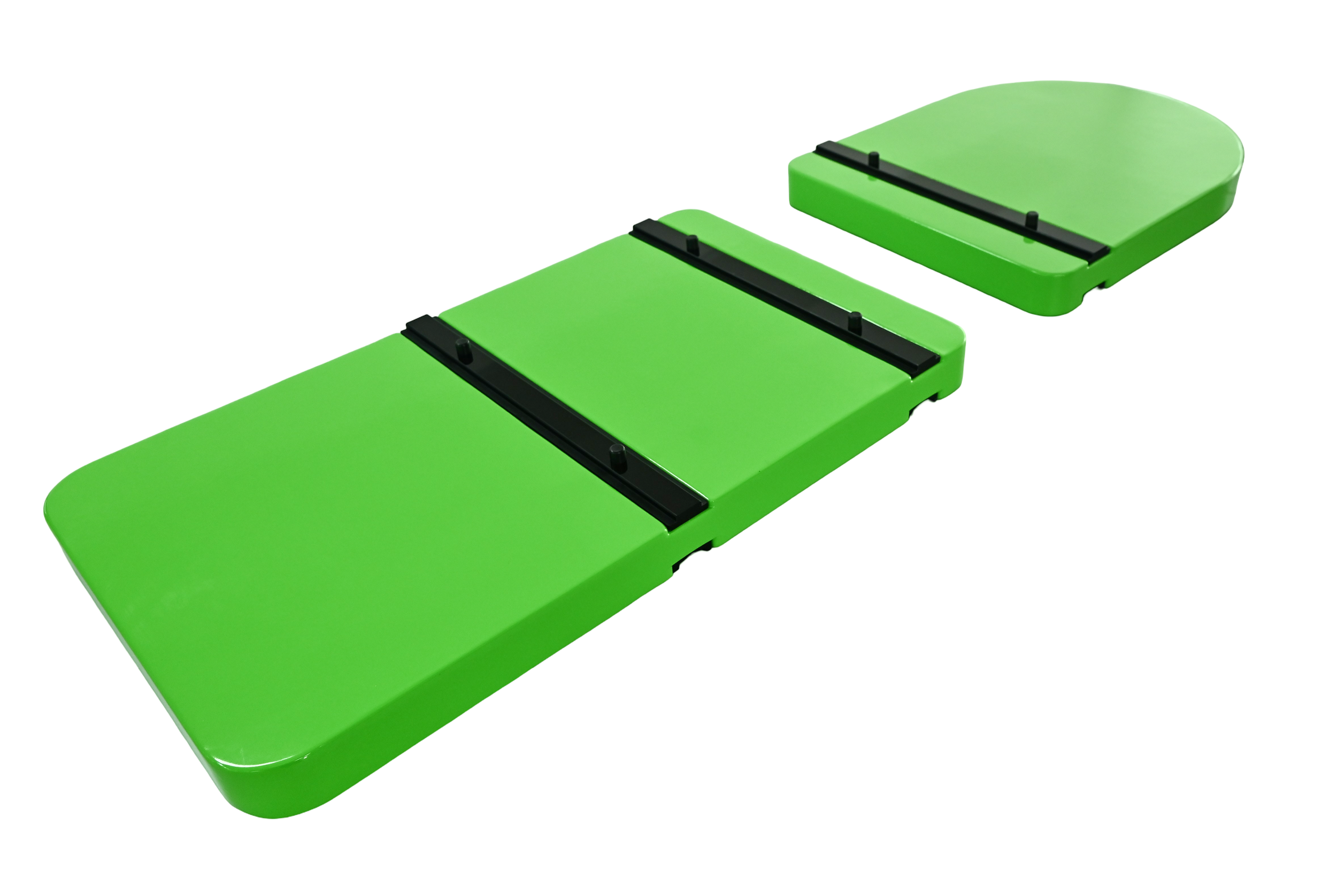

Prone Breast Elevation Blocks

  • The Prone Breast Elevation Blocks can be stacked to accommodate different patient setup needs.

    Product ID:

    • Prone Breast Elevation Block Set: R612-BE4-E

    • Upper Elevation Block

    • Lower Elevation Block

  • Compatible with the Prone Breast Cushion Set

    Other Compatibility:

    • Can be indexed directly on a couchtop

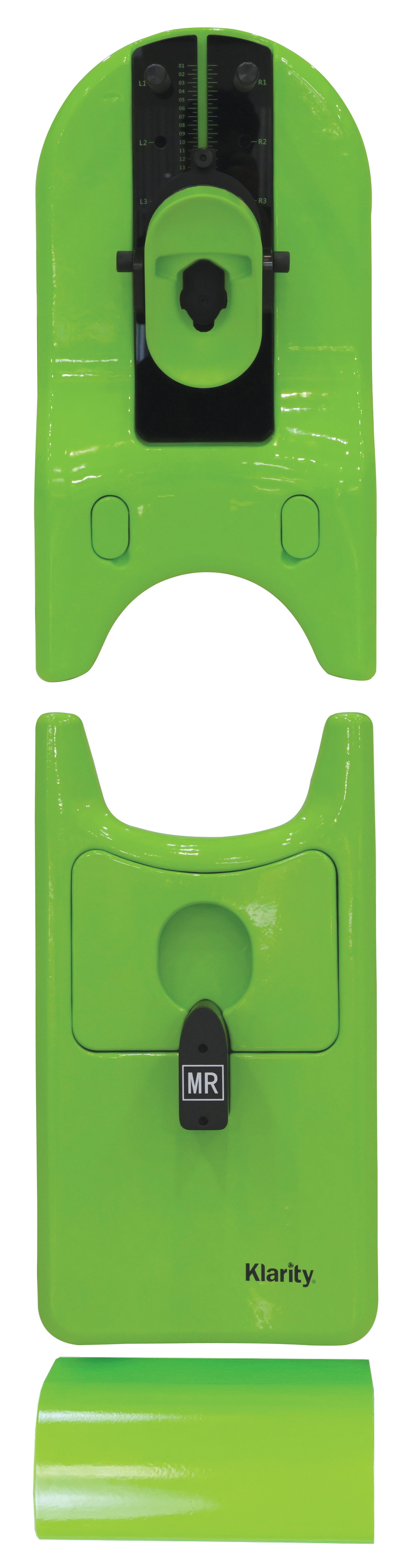

Prone Belly Cushion Set

Klarity Uno™ Prone Belly Cushion Set R616-AE5, green foam with tilting prone head support

  • The Prone Belly Cushion Set sits on top of the Uno™ and can also be used independently on a couch top.

    Product ID:

    • R616-AE5 (Carbon Fiber)

    Dimensions:

    • Upper Cushion: 78cm (length) x 41cm (width) x 25cm (height)

    • Lower Cushion: 74cm (length) x 41cm (width) x 25cm (height)

    • Upper Prone Cushion with Removable Port Cushions

    • Tilting Prone Head Support

    • Upper Hand Grips

    • Lower Prone Cushion with Groin Lock and Removable Pelvic Hole Cushion

    • Leg Bolster

  • Uno™ Compatibility:

    • Standard

    • Narrow

    • HexaPod (requires two R616-AE5-SP1 Indexing Bars, sold separately)

    Mask Compatibility:

    • Uno™ Torso Masks

    Other Compatibility:

    • Can be indexed directly on a couchtop

Klarity Optek™ Demi-Baseplate Indexing bar R616-PDCF-S3, carbon fiber indexing bar

Optek™ Demi-Baseplate Indexing Bar

  • Allows the Optek™ Demi-Baseplate to be indexed to the Tilting Board.

    Product ID:

    • R616-PDCF-S3 (Carbon Fiber) *Special order item

    Dimensions: 54cm x 2.5cm

    • Indexing Bar

  • Compatibility:

    • Uno™ Tilting Board

    • Optek™ Demi-Baseplate

Klarity Optek™ Demi-Baseplate Indexing bar R616-PDCF-S3, carbon fiber indexing bar

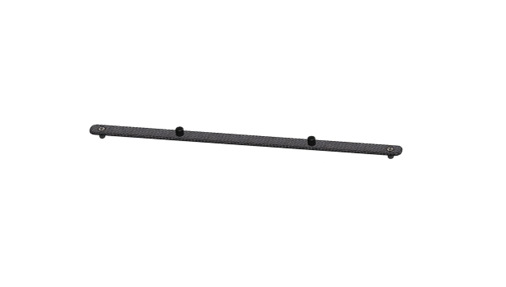

Vacuum Bag Indexing Bar

  • Allows a vacuum bag to be indexed to the Uno™ Standard or Narrow Baseplate.

    Product ID:

    • RE-616CF (Carbon Fiber) *Special order item. Please allow extra time for delivery.

    • Indexing Bar

  • Compatibility:

    • Uno™ Standard Baseplate

    • Uno™ Narrow Baseplate

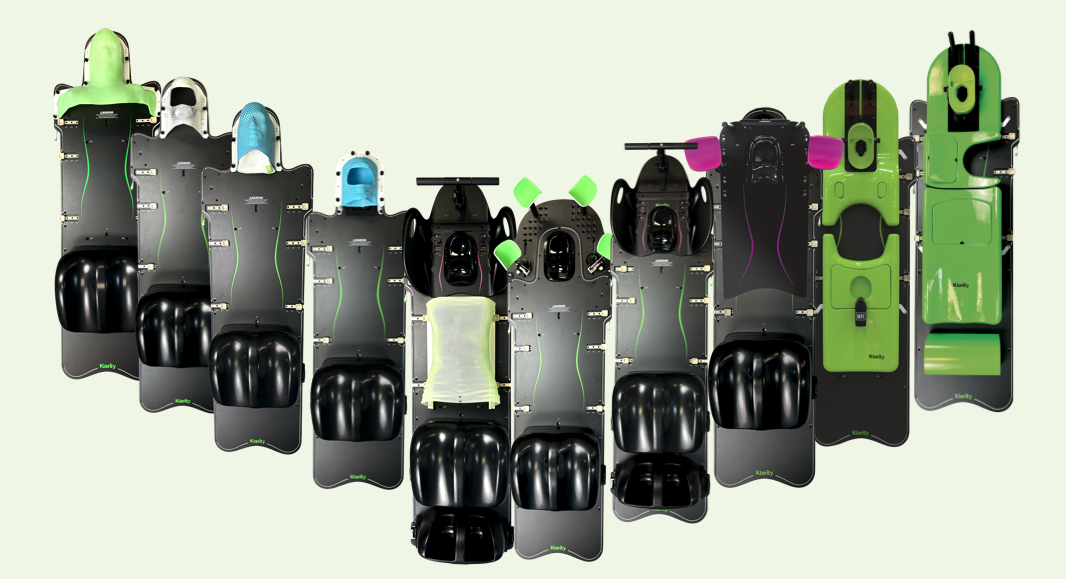

Klarity Uno™ Supone Breast Configuration with Wingboard
Klarity Uno™ Head and Neck Configuration
Klarity Uno™ Supine Breast Configuration with Overhead Arm Positioner

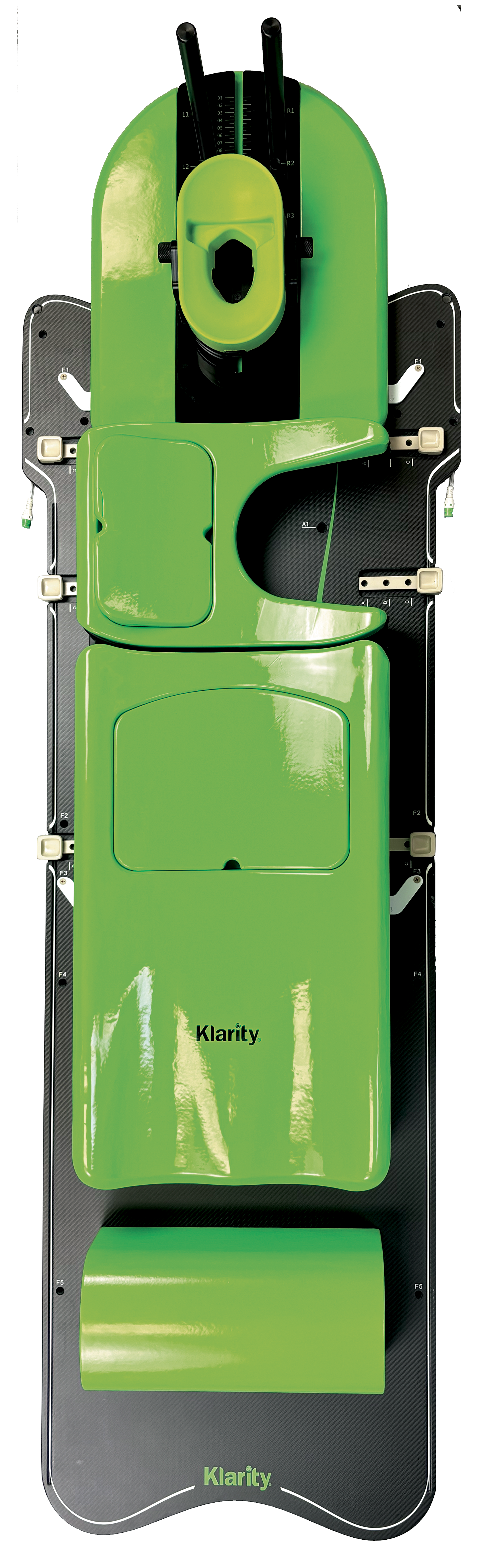

Klarity Uno™ Prone Breast Configuration
Klarity Uno™ Torso Configuration
Klarity Uno™ Prone Belly Configuration
Klarity Uno™ Tilting Board Configuration
Klarity Uno™ Whole Brain Configuration

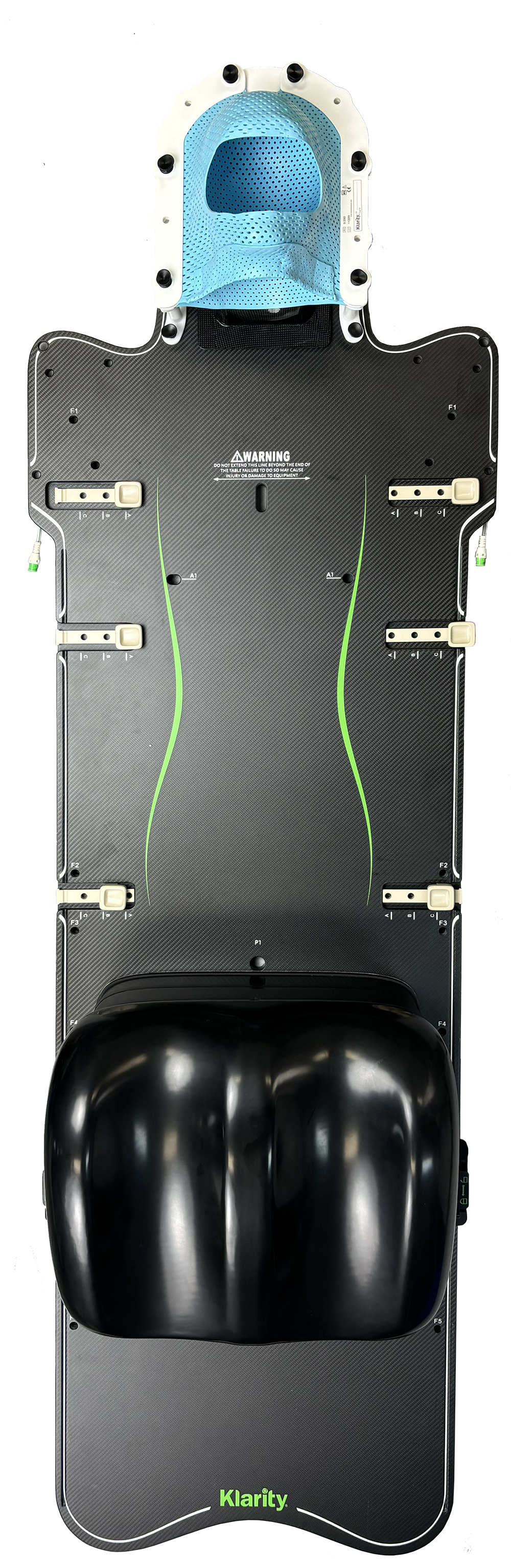

Klarity Uno™ SRS Configuration
Klarity Uno™ Intracranial Configuration
